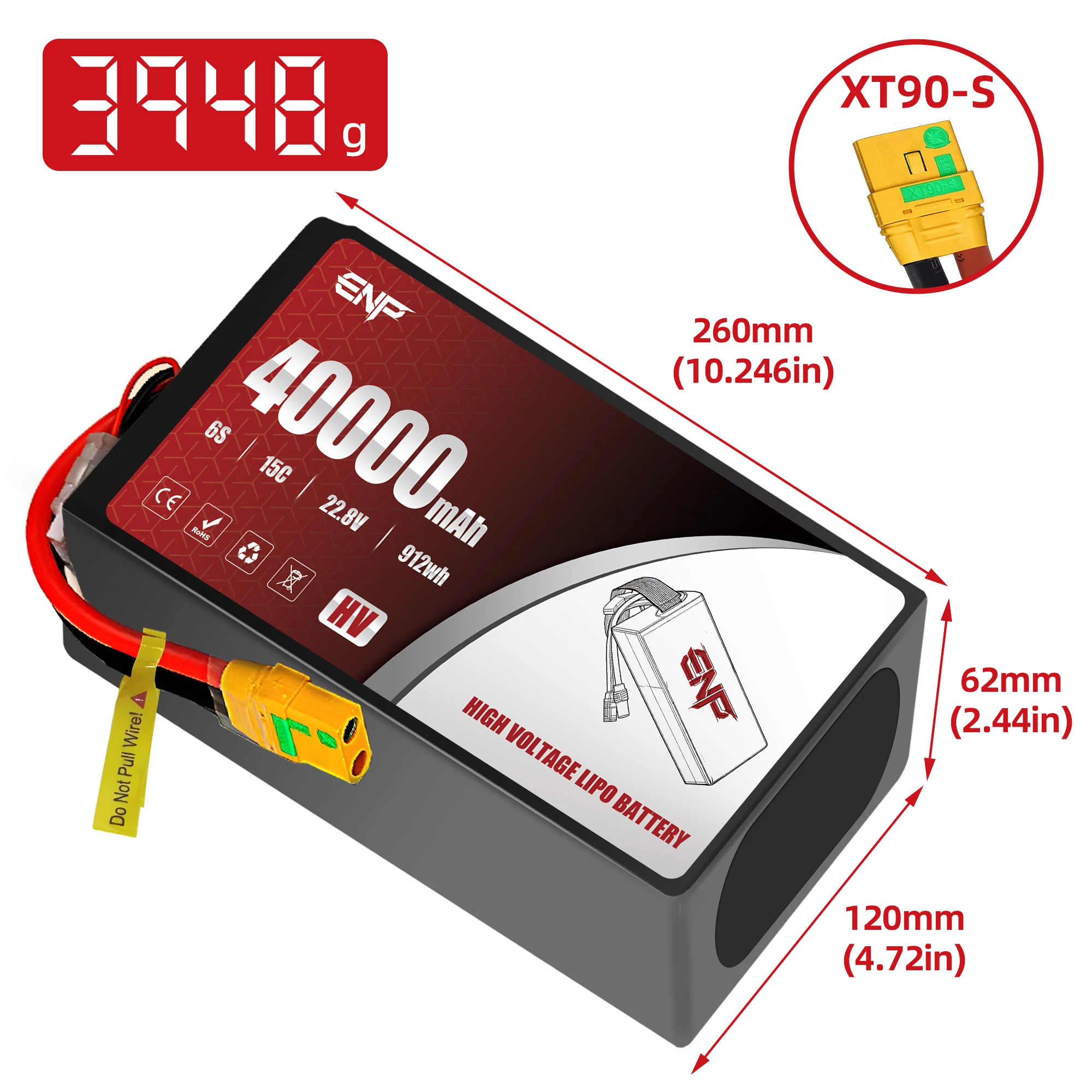

40000mah 6S High Voltage lipo Battery (dimension figure)

40000mAh series

The 40000mAh 3.8V HV LiPo is the top-tier capacity for industrial UAVs, designed for ultra-heavy load platforms and long-range missions. Configurable as 12S / 14S / 16S, it supports extended flight durations of 60–120 minutes.

Key Features

Longest endurance in the HV lineup

Supports 10–20kg payloads

Compatible with large industrial platforms

Powers advanced LiDAR, radar, and large gimbal systems

Suitable for mission-critical and governmental operations

Quick Inquiry

Model	Capacity	Voltage	Discharge Rate	Energy	Charge Cut-off Voltage	Discharge Cut-off Voltage	Weight	Dimensions (TWL mm)
ENP400006S15-HV	40000mah	6S 22.8V	15C	912Wh	26.1V	22.2V	3948g(±15g)	62120260
ENP400008S15-HV	40000mah	8S 30.4V	15C	1216Wh	34.8V	29.6V	5264g(±15g)	82.6120260
ENP4000012S15-HV	40000mah	12S 45.6V	15C	1824Wh	52.2V	44.4V	7896g(±15g)	123.9120260
ENP4000014S15-HV	40000mah	14S 53.2V	15C	2128Wh	60.9V	51.8V	9212g(±15g)	144.6120260

Typical Applications

Heavy-load cargo UAVs

National-level inspection drones

Special mission UAVs (SAR, reconnaissance, oil & gas)

Ultra-large cinematography drones

Radar / sonar / long-range scanning UAVs

Positioning vs. Other Capacities

Highest capacity for professional use

Ideal for high-budget, high-demand missions

Designed for enterprise & governmental UAV programs
