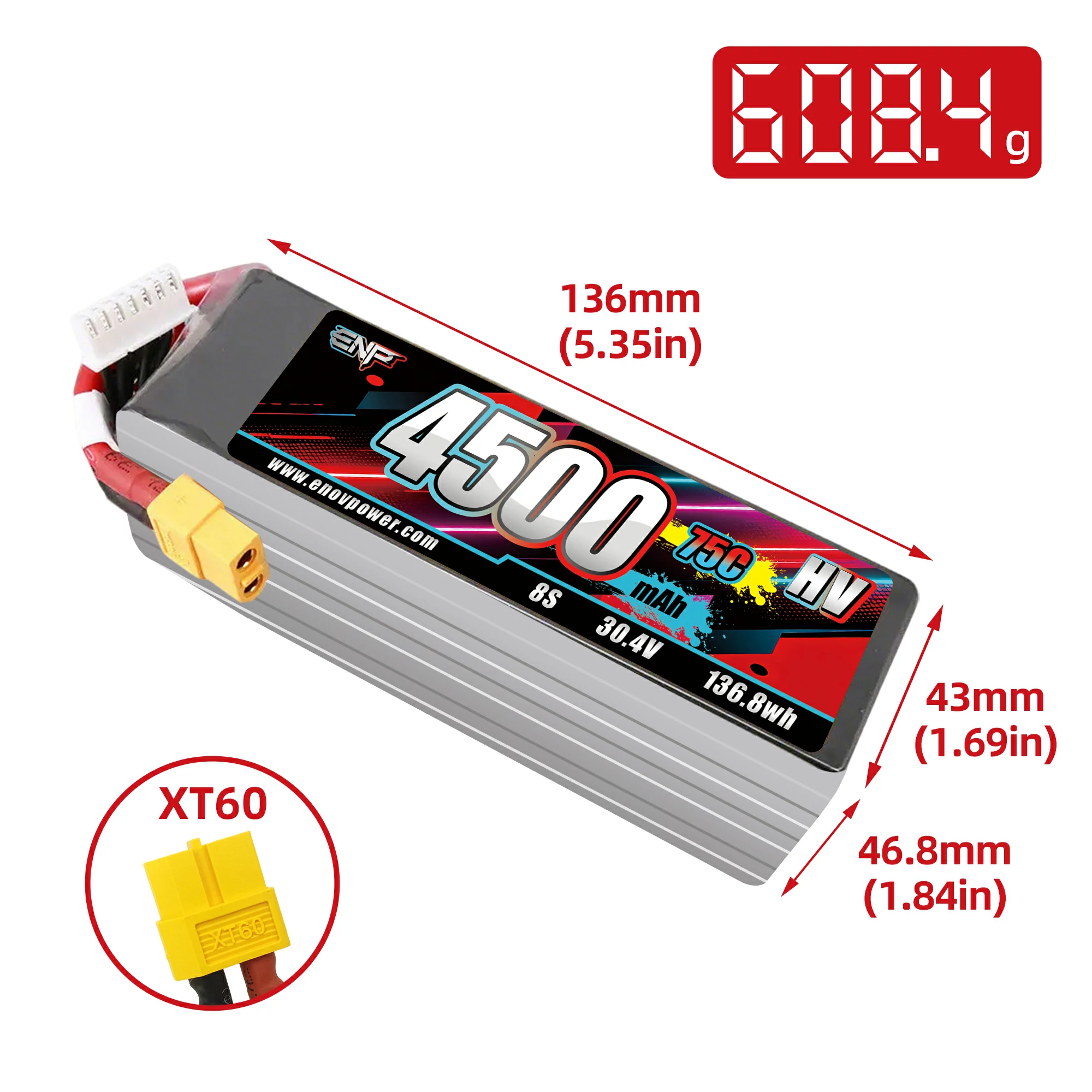

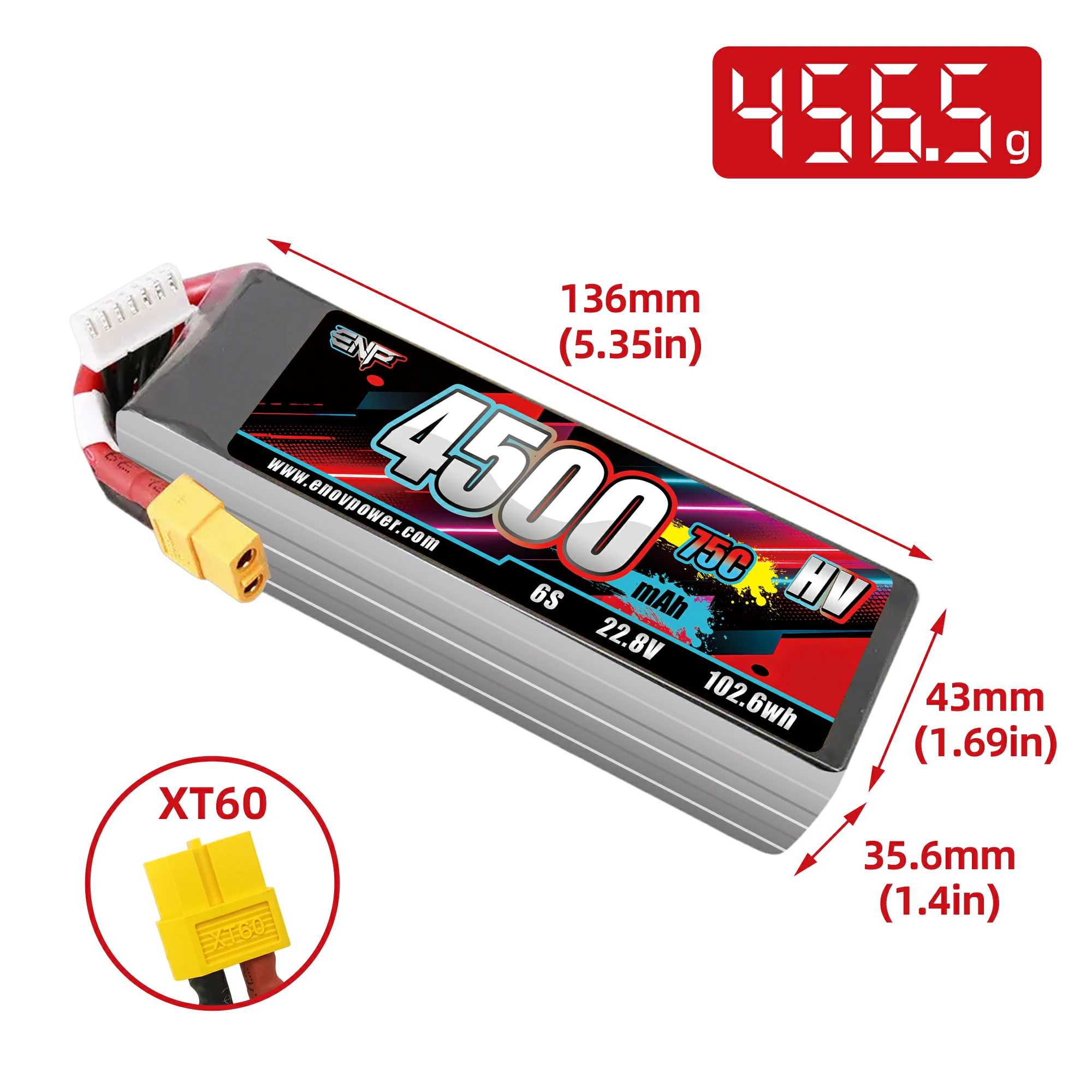

4500mah 75C High Voltage Lipo Battery (dimension figure)

4500mAh series

The 4500mAh High Voltage (3.8V) LiPo battery is a lightweight HV power option commonly used in 4S / 6S / 8S small-to-medium multirotor drones. With higher cell voltage, it provides improved energy efficiency and extended flight time while keeping the overall system lightweight.

Key Features

● Lightweight for highly agile operation

● HV 3.8V per cell delivers improved endurance

● Low internal resistance for stable mid-C output

● Ideal for lightweight, responsive UAV platforms

Quick Inquiry

Model	Capacity	Voltage	Discharge Rate	Energy	Charge Cut-off Voltage	Discharge Cut-off Voltage	Weight	Dimensions (TWL mm)
ENP45002S75-HV	4500mah	2S 7.6V	75C	34.2Wh	8.4V	7.2V	152.1g(±15g)	13.243136
ENP45003S75-HV	4500mah	3S 11.4V	75C	51.3Wh	12.6V	10.8V	228.2g(±15g)	18.843136
ENP45004S75-HV	4500mah	4S 15.2V	75C	68.4Wh	16.8V	14.4V	304.2g(±15g)	24.443136
ENP45006S75-HV	4500mah	6S 22.8V	75C	102.6Wh	25.2V	21.6V	456.5g(±15g)	35.643136
ENP45008S75-HV	4500mah	8S 30.4V	75C	136.8Wh	33.6V	28.8V	608.4g(±15g)	46.843136
ENP450012S75-HV	4500mah	12S 45.6V	75C	205.2Wh	50.4V	43.2V	912.6g(±15g)	69.243136

Typical Applications

Small mapping drones

Emergency/first-response micro UAVs

Urban inspection drones

Compact aerial filming platforms

Long-range FPV cruising aircraft

Positioning vs. Higher Capacities

Prioritizes maneuverability over duration

Best for lightweight platforms (≤500mm frame)

Ideal for rapid deployment UAVs
