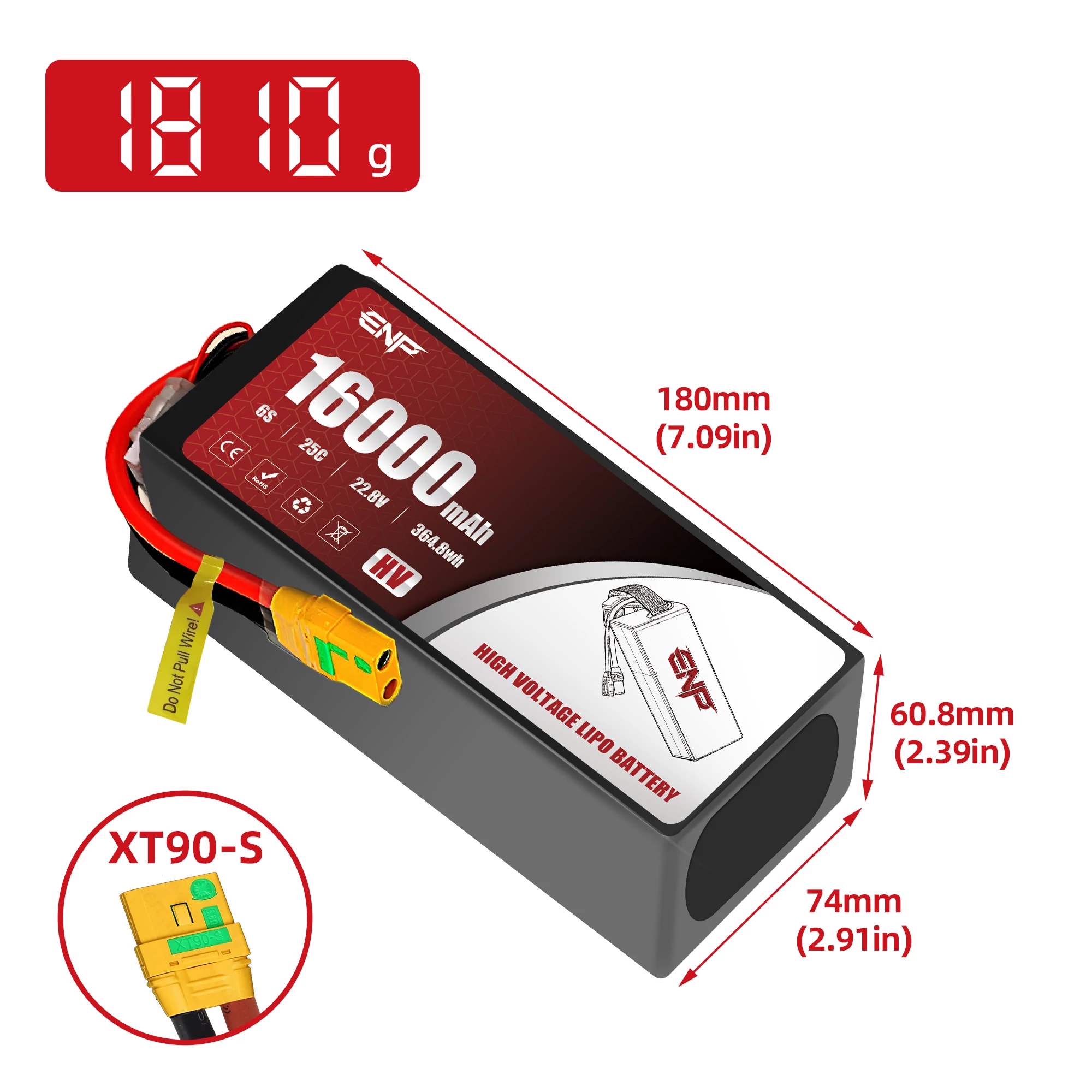

16000mah 6S High Voltage lipo Battery (dimension figure)

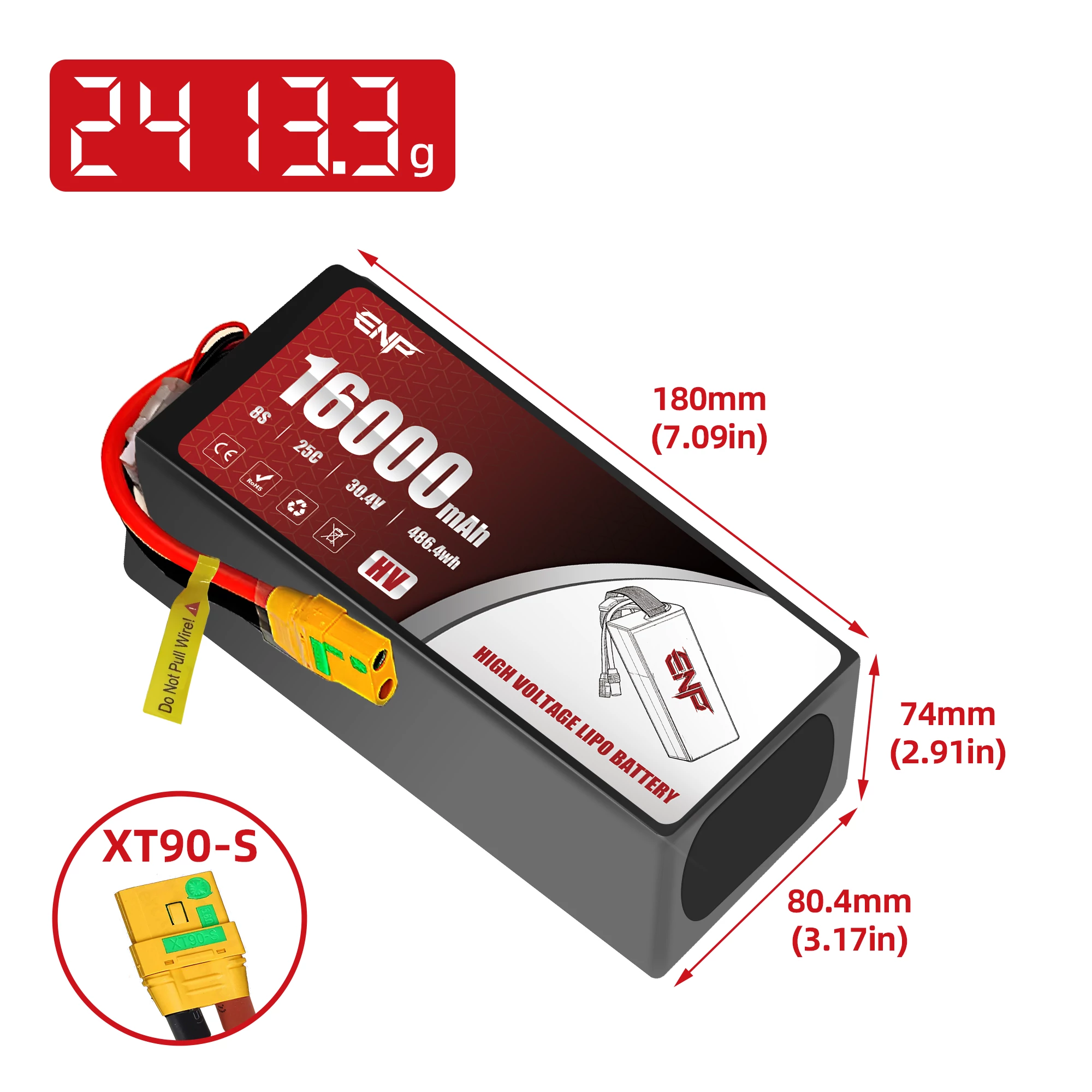

16000mah 8S High Voltage lipo Battery (dimension figure)

16000mAh series

The 16000mAh High Voltage (3.8V) LiPo is a commonly used capacity for mid-large UAVs. Typically configured as 12S / 14S, it offers an ideal balance of endurance, maneuverability, and payload capacity, making it a popular choice for mapping and inspection drones.

Key Features

● Higher energy efficiency from HV chemistry

● Stable output for 1–5kg payloads

● Suitable for 20–40 min flight missions

● Lightweight for improved maneuverability

● Perfect for professional mid-large UAV platforms

Quick Inquiry

Model	Capacity	Voltage	Discharge Rate	Energy	Charge Cut-off Voltage	Discharge Cut-off Voltage	Weight	Dimensions (TWL mm)
ENP160002S25-HV	16000mah	2S 7.6V	25C	121.6Wh	8.7V	7.4V	603.3g(±15g)	21.674180
ENP160003S25-HV	16000mah	3S 11.4V	25C	182.4Wh	13.05V	11.1V	904.9g(±15g)	31.474180
ENP160004S25-HV	16000mah	4S 15.2V	25C	243.2Wh	17.4V	14.8V	1206.6g(±15g)	41.274180
ENP160006S25-HV	16000mah	6S 22.8V	25C	364.8Wh	26.1V	22.2V	1810g(±15g)	60.874180
ENP160008S25-HV	16000mah	8S 30.4V	25C	486.4Wh	34.8V	29.6V	2413.3g(±15g)	80.474180
ENP1600012S25-HV	16000mah	12S 45.6V	25C	729.6Wh	52.2V	44.4V	3619.8g(±15g)	119.674180
ENP1600014S25-HV	16000mah	14S 53.2V	25C	851.2Wh	60.9V	51.8V	4223.1g(±15g)	139.274180

Typical Applications

Mapping and surveying UAVs

Powerline and municipal inspection

Mid-size aerial filming systems

Security and environmental monitoring

Light-weight LiDAR platforms

Positioning vs. Other Capacities

Best balance between endurance and mobility

Lighter than 22000mAh, longer flight than 12000mAh

Designed for professional-grade mid-sized drones
